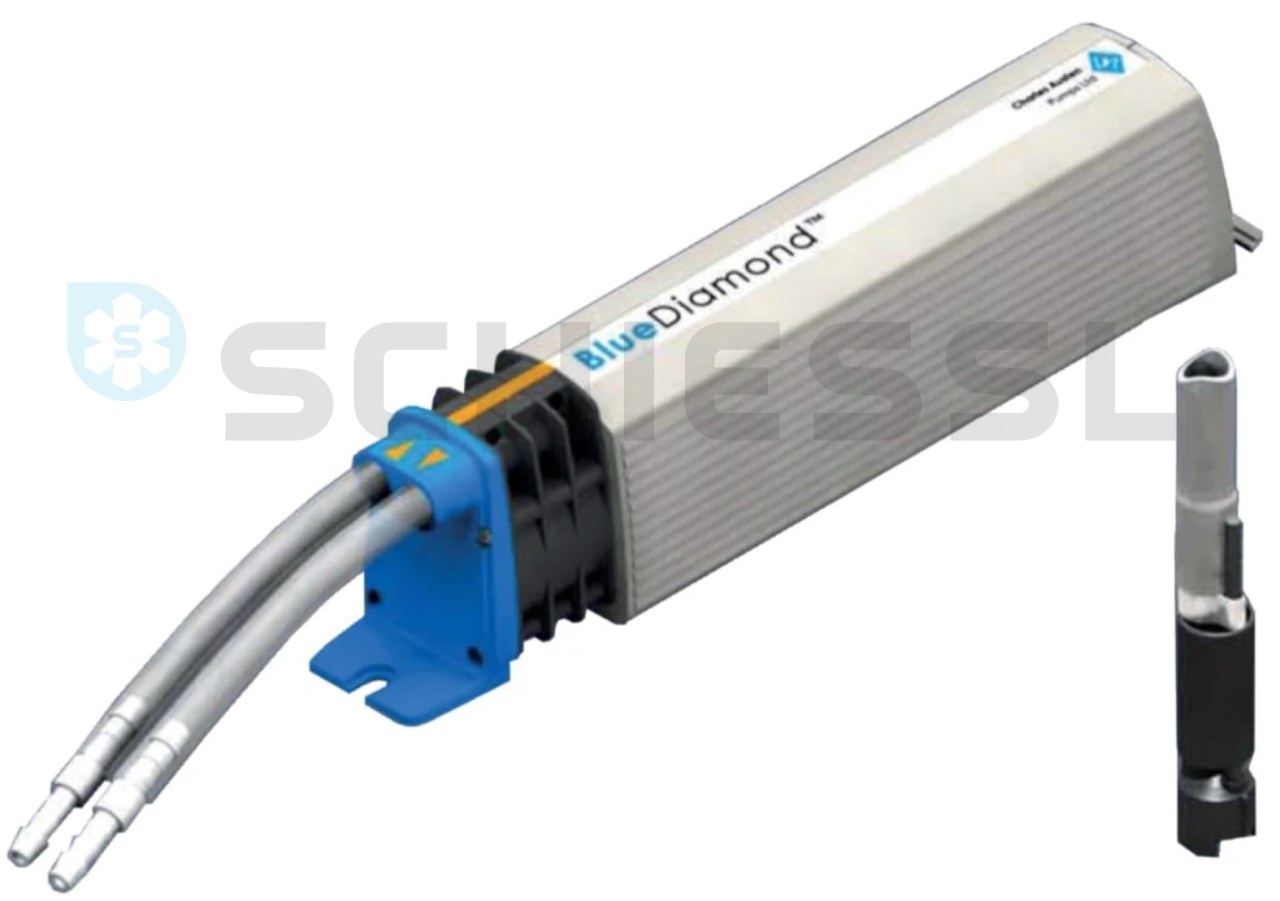

AKCE - Čerpadlo kondenzátu Mega Blue se snímačem DrainStik

Typ: X87-820
Jmenovitý výkon: 50 l / hod.
Maximální výtlak: 20 m
Max. sací výška: 7 m
Napětí: 230V/50Hz s Dr
Hlučnost: 23dB(A)
Rozměry: 280 x 58 x 67mm

Weitere Informationen (DE)

The MegablueTM condensate pump is a rotation membrane pump in the BlueDiamond range suitable for many different applications that guarantees reliable, uninterrupted operation. Particularly good for air conditioning server rooms. The MaxiBlueTM is slim enough to cable ducts, powerful enough for remote installation and quiet enough for installation into false ceilings.

The pump unit consists of the pump itself with inlet and outlet hoses, a snap clip for attaching the drainage line, removable pivoting rubber feet, the internal control circuit, the power supply and a three-core mains cable (2 m).

Version:
MegaBlueTM with DrainStikTM:
The DrainStikTM features semiconductor fill level sensors for high/low level as well as a sensor for the alarm contact. The DrainStikTM can be installed in the condensation drain hose for all common devices directly or using an adapter.


Technické parametry

Dimensions

Length 248 mm

General information

Alarm contact FSA – spannungsfreies Relais und akustischer Alarm
Connectable indoor units Kassettensysteme, Mini-Split- und Split-Klimaanlagen

Performance data

max. suction lift 7 m

Weight

Weight net 0,976 kg

Elektrická data

Napájecí napětí 230 / 1 / 50 V / Ph / Hz

Obecné informace

Typ Rotationsmembranpumpe
Senzor DrainStik
Typ MegaBlue- DTM

Připojení

Vnější průměr 6 mm

Rozměry

Šířka 58 mm
Výška 68 mm

Údaje o výkonnosti

max. nosič 20 m
max. Dopravní kapacita 50 l / h
max. výkon 50 kW

Zvukové údaje

Hladina akustického tlaku 23 dB (A) ve vzdálenosti 1 m

Výrobce: CHARLES AUSTEN

Jednotky: Ks

Váha: 1300.00
