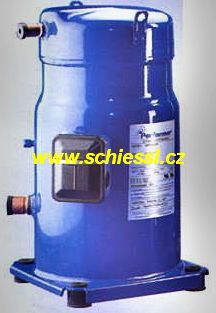

Kompresor SZ160-4RA, Maneurop

In Danfoss Performer® scroll compressors, compression takes place between two scroll elements positioned in the upper area of the compressor housing above the motor (see diagram). The intake nozzles on the compressor are located in the lower area of the housing. The intake gas enters the large volume compressor housing and is guided through the lateral openings in the motor plate and across the motor. Any oil droplets that are also pulled through are separated from the intake gas and deposited into the oil sump. The gas that is guided across the motor cools the motor and is then guided into the scroll unit.

The compressor system consists of 2 scrolls (spirals), an orbital scroll and a fixed scroll. The figure on page 5 explains the compression process. The upper spiral containing the pressurised gas outlet remains static while the lower spiral performs an eccentric motion. Both spirals are held at a fixed angle to one another (180 °) using a special drive unit. When the lower spiral moves into the upper spiral, a crescent shaped compression area is created, the volume of which reduces towards the centre of the spirals. Throughout the steady working process of the two spirals moving inside one another, suction, compression and output takes place. Three rotations are required to fully compress the volume, producing consistent and gentle compression. A check valve is located at the outlet of the scroll. This protects the compressor from backflow when switched off. The pressurised gas nozzle is located on the side towards the top of the compressor housing.
