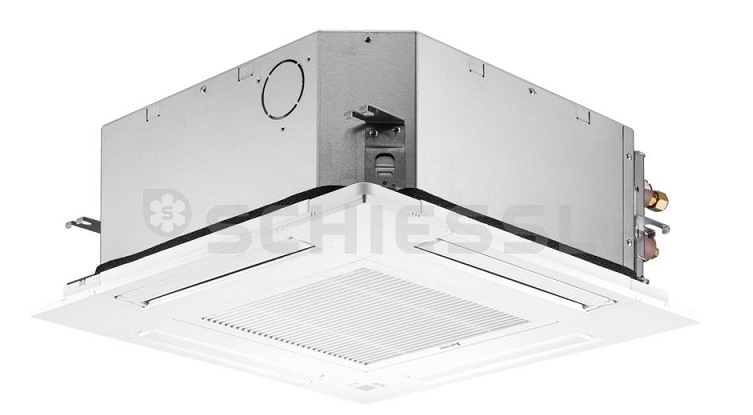

Mitsubishi M-Serie SLZ-M60FA, vnitřní splitová čtyřcestná kazetová jednotka, R32

Housing
made of galvanized sheet steel with thermal insulation. Simple assembly. All important parts are accessible from below with appropriate maintenance clearance. Particularly easy installation of the panel due to special mounting system.

Air intake
from below via an optional panel, fold-out grille with long-life filter behind it.

Air outlet
takes place on 4 sides. The cassette can also be used 2- or 3-way by closing the supply air openings. Air guide vanes motor-driven and individually adjustable on each side for comfortable, draught-free air intake. Coanda effect with horizontal air flap position. Fresh air connection is provided as standard.

Heat exchanger
High-performance heat exchanger, as evaporator/condenser, made of copper tube with pressed-on aluminum fins, with flare connections. Refrigeration system dried, evacuated and filled with inert gas. Condensate pan insulated against condensation water.

Condensate pump
built into the unit, with condensate sensor, as centrifugal pump with 850mm delivery head, further condensate line with slope.

Fan
direct driven via inverter motor, with an extremely quiet running tangential fan in 3D Turbo Fan technology, vibration damped mounted and dynamically balanced, 3-speed switchable.

Control system
completely wired according to the current regulations and equipped with a terminal strip for mains supply and control. A control board switches and monitors all functions.
