VÝPRODEJ - LG PC24SQ.NSK (S3NM24K22FA), Standard Plus, inverter, vnitřní nástěnná splitová i multisplitová jednotka, R32

VÝPRODEJ - LG PC24SQ.NSK (S3NM24K22FA), Standard Plus, inverter, vnitřní nástěnná splitová i multisplitová jednotka, R32img-lg-klimageraet-standard-plus-wandgeraet-front-und-wifi-NzUyLjIyMTc-3D-1-
Chladicí výkon: 6.6 kW
Topný výkon: 7.5 kW
Příkon: 2.16 / 2,24 kW
Napětí: 1 / 220~240 / 50
Energetická třída: A++ / A+
Hladina akustického tlaku ( vnitřní ): 49 / 47/ 42 / 34 / 31 dB(A)±3
Připojení: 6.35(1/4) - 15.88(5/8)
Rozměry ( mm ): 998 x 345 x 210
Chladivo: R32

Weitere Informationen (DE)

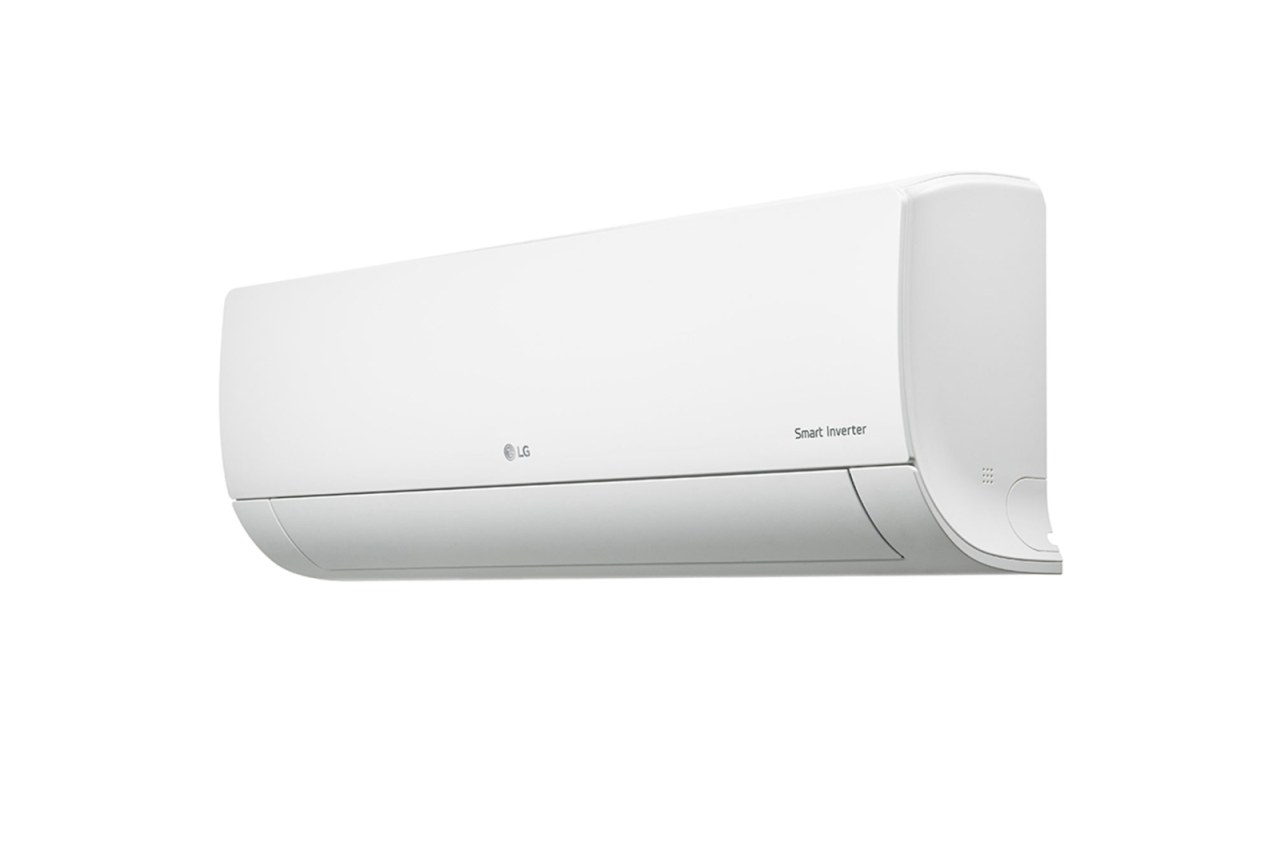

This designer air conditioning unit with a flat profile in white is intended for wall mounting (near the ceiling). The unit features a “Dual Protection” filter that removes dust particles from the air down to 10 µm in size. The filter can be removed quickly, regenerated and is easy to clean. The housing is made of plastic.
There is a removable panel on the base of the unit under which you will find all the necessary connections. There is no need to remove all the cladding elements. There is also a mounting clip that provides both sufficient distance between the wall and the unit and fixes the pipes in place to make mounting much easier.
The fan (BLDC motor) is directly driven and mounted with vibration insulation. The extremely quiet radial fan is dynamically balanced and has 4 different speeds. Skew fan: By minimising the surface pressure on the fan blades when in contact with air, peak noise is reduced to become the quietest in the world.
The air intake is located in the upper area of the unit. Nylon filter, can be regenerated. Air distribution is in the lower area through an adjustable air deflection louvre (motorised). The direction of the horizontal louvres can be adjusted between positions 1 to 6 with Auto Swing. This function allows specific zones to be cooled more quickly.
The direction of the vertical louvres can be adjusted between positions 1 to 5, left & right, set with Auto Swing. This function allows specific zones to be cooled even more quickly.
The 4-way swivel ensures optimum air flow throughout the room. The Jet Cool function distributes air evenly at high speed and guarantees optimum and fast cooling in just a few minutes.

The Standard Plus units in the PC-SQ series feature an integrated WiFi module. After linking to the LG-SmartThinkQ server, monitoring and diagnostic functions become available via smartphone / tablet PC in addition to control functions. The unit comes with an infrared remote control as standard.


Technické parametry

Elektrická data

Doporučené přečerpávací relé 25 A
Heizen 10,4 A
Kühlen 9,8 A
Spojovací kabel 4 x 1,0 mm ²
Napájecí napětí 230 / 1 / 50 V / Ph / Hz
empfohlener Netzkabel pharmaquerschnitt 3 x 2,5 mm ²

Hmotnost

Hmotnost netto 11,9 kg

Obecné informace

Použití Kühlen und Heizen
Typ Jednoduché / multi- Split
Stavebnictví Wandgerätfrance. kgm
Vytápění A +
Chlazení A + +
Chladicí prostředek R32
Chladicí prostředek R410A

Rozměry

Šířka 998 mm
Výška 345 mm
Hloubka 210 mm

Spojení potrubí

Kapalná linka 6,35 mm
Plynové vedení 9,52 mm

Údaje o výkonnosti

Odvlhčování 2,5 l / h
Vytápění 1628 kWh / a
Chlazení 335 kWh / a
Heizen (Niedrig / Mittel / Hoch) 630 / 786 / 966 m ³ / h
Kühlen (Niedrig / Mittel / Hoch) 630 / 786 / 966 m ³ / h
Motor ventilátoru 60 W
Jmenovitý topný výkon 7,50 kW při + 7 ° C4.85 kW při -7 ° C
Jmenovitá chladicí kapacita 6,60 kW
Vytápění 2,238 kW
Chlazení 2,164 kW

Zvukové údaje

Heizen (Niedrig / Mittel / Hoch) 34 / 42 / 47 dB (A)
Kühlen (Niedrig / Mittel / Hoch) 34 / 42 / 47 dB (A) režim spánku: 31 dB (A)
Chlazení (vysoké) 65 dB (A)


Technické parametry

ParametrHodnota
Elektrická data
Doporučené přečerpávací relé25 A
Heizen10,4 A
Kühlen9,8 A
Spojovací kabel4 x 1,0 mm ²
Napájecí napětí230 / 1 / 50 V / Ph / Hz
empfohlener Netzkabel pharmaquerschnitt3 x 2,5 mm ²
Hmotnost
Hmotnost netto11,9 kg
Obecné informace
PoužitíKühlen und Heizen
TypJednoduché / multi- Split
StavebnictvíWandgerätfrance. kgm
VytápěníA +
ChlazeníA + +
Chladicí prostředekR32
Chladicí prostředekR410A
Rozměry
Šířka998 mm
Výška345 mm
Hloubka210 mm
Spojení potrubí
Kapalná linka6,35 mm
Plynové vedení9,52 mm
Údaje o výkonnosti
Odvlhčování2,5 l / h
Vytápění1628 kWh / a
Chlazení335 kWh / a
Heizen (Niedrig / Mittel / Hoch)630 / 786 / 966 m ³ / h
Kühlen (Niedrig / Mittel / Hoch)630 / 786 / 966 m ³ / h
Motor ventilátoru60 W
Jmenovitý topný výkon7,50 kW / při + 7 ° C4.85 kW při -7 ° C
Jmenovitá chladicí kapacita6,60 kW
Vytápění2,238 kW
Chlazení2,164 kW
Zvukové údaje
Heizen (Niedrig / Mittel / Hoch)34 / 42 / 47 dB (A)
Kühlen (Niedrig / Mittel / Hoch)34 / 42 / 47 dB (A) / režim spánku: 31 dB (A)
Chlazení (vysoké)65 dB (A)

Výrobce: LG

Jednotky: Ks

Váha: 11900.00
